Smooth Operation and Large Capacity 2200 KG Rotary Drum Trommel Screen for Industrial

Name: Smooth Operation and Large Capacity 2200 KG Rotary Drum Trommel Screen for Industrial
Brand: guote
Price: 4 USD

Smooth Operation and Large Capacity 2200 KG Rotary Drum Trommel Screen for Industrial Manufactures

Applicable Industries : Energy & Mining

Showroom Location : None

Condition : New

Type : Gravity Separator

Production Capacity : Varies

Place of Origin : Shandong, China

Brand Name : guote

Voltage : 380V

Dimension(L*W*H) : 2600*1400*1700mm

Weight : 2200 KG

Warranty : 1 Year

Marketing Type : Ordinary Product

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, PLC

Key Selling Points : Automatic

Product name : Trommel Screen

Application : Ores Stone Sands

Capacity : 1-10t/h

Screen size : 0-0.1mm

Usage : Mining Concentration

Spare parts supply : Lifelong Provide

Color : Customizable

After-sale service : Timely Solutions

Quality : High-level

Certification : ISO9001,CE

Packaging Details : Containers or according to customer requirements

Port : qingdao

Supply Ability : 100 Set/Sets per Month

Price : $4,988.00/sets 1-4 sets

MOQ : 1 set

Contact Now

Product Description

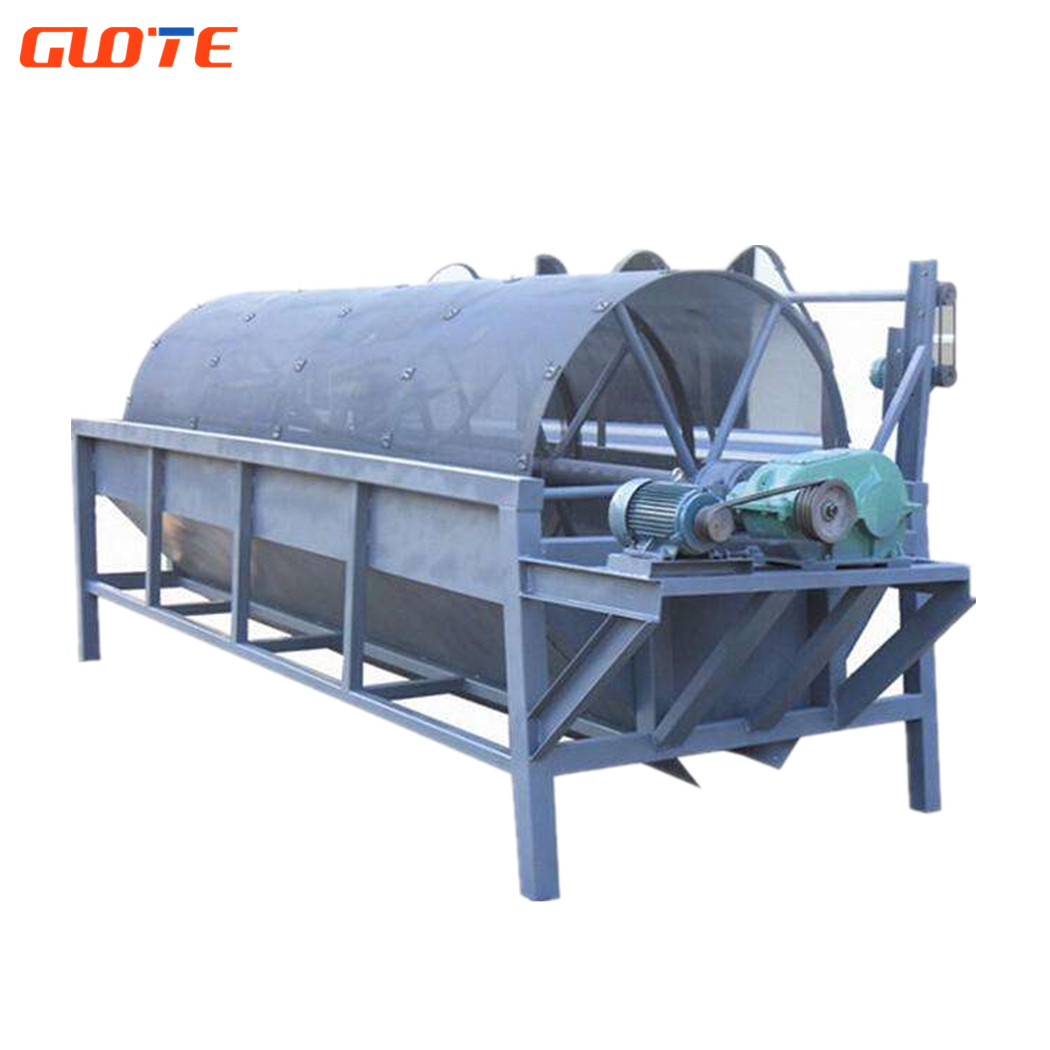

Trommel screen is also named drum screen, whic is consist of four parts: drum, undersize hopper, support base, drive device.

When material feed into the drum, under the influence of large centrifugal force, material will make a sprial movement along with drum surface. Meanwhile, oversize materials was removed out of discharge outlet; qualified materials(different sizes) be collected in undersize hoppers. Then sent to be the next system by belt conveyor or other.

Smooth Operation and Large Capacity 2200 KG Rotary Drum Trommel Screen for Industrial

Technical Features

Trommels are designed for high performance screening, classification and grading application. With over 50 years experience of it, our trommel screen has the following features:

Good performance, highest production rates, lowest input costs and long service life.
Capacity range of 7.5-1500 m3/hour of slurry, or 6-600 tons/hour of solids, per single trommel.
Speical design of screen makes it more durable than a common one.
Heavy duty jacking and adjustable stands, assist in rapid set up & assembly time.
High pressure spray bar network around the hopper and through out the length of the trommel.
Heavy duty roller supports (steel or rubber) wheels.
Portable mobile or stationary configuration.

Application

1) Quarry: gravel, clay, mountain meal, sand, etc.

2) Coal Industry: lump coal, coal dust, coal washing, etc.

3) Cold Mine: gold screening and washing

4) Chemical Industry: sifting calcium oxide, compost

5) Metallurgy, construction, mineral-selecting, etc.

6) Recycling Industy: solid waste, scrap tires, plastic, etc.

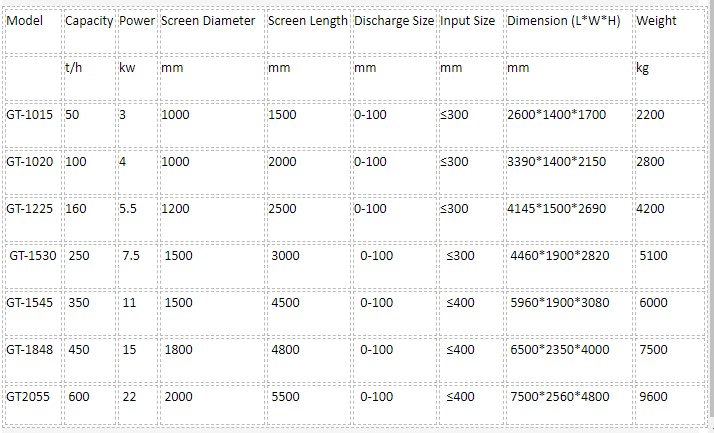

Technical Data
