Viet Nam Market Rotary Drum Screen Trommel Screen with Video Outgoing-Inspection

Name: Viet Nam Market Rotary Drum Screen Trommel Screen with Video OutgoingInspection
Brand: GUOTE
Price: 4 USD

Viet Nam Market Rotary Drum Screen Trommel Screen with Video Outgoing-Inspection Manufactures

Applicable Industries : Energy & Mining

Showroom Location : Viet Nam, Indonesia, Sri Lanka

Condition : New

Type : Gravity Separator

Production Capacity : 98%

Place of Origin : Shandong, China

Brand Name : GUOTE

Voltage : 380V

Dimension(L*W*H) : Size

Weight : 750 KG

Warranty : 1 Year

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Bearing, Motor, PLC, Gearbox

Key Selling Points : High Productivity

After-sales Service Provided : Engineers available to service machinery overseas

Color : Customers Requirements

Local Service Location : Viet Nam

Usage : Mining Concentration

Capacity : 1-50t/h

Application : Gold Mining

Keywords : Gold Washing Vibrating Screen

Machine type : Metal Ore Flotation Beneficiation Equipment

Material : Carbon Steel

Packaging Details : standard export container,20GP,40GP ,40HQ,FR container,in bulk, the spare parts in wooden case or according to the customer's requirements

Port : Qingdao

Supply Ability : 9600 Set/Sets per Year

Price : $4,988.00/sets >=1 sets

MOQ : 1 set

Contact Now

Trommel Screen, Rotary Drum Screen

Viet Nam Market Rotary Drum Screen Trommel Screen with Video Outgoing-Inspection

Product Overview

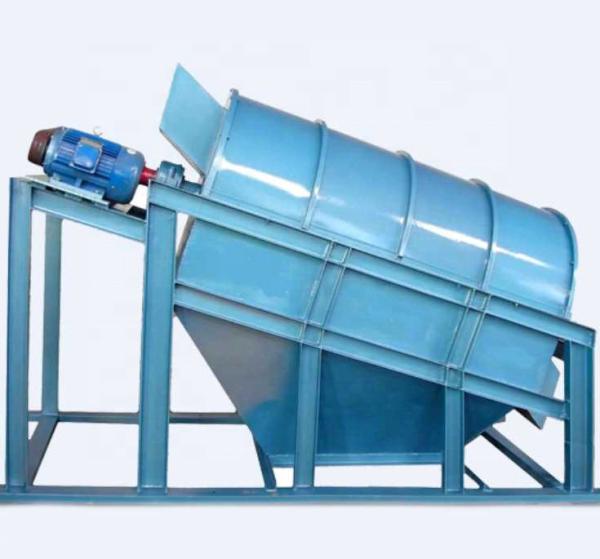

Trommel screen is also named drum screen, whic is consist of four parts: drum, undersize hopper, support base, drive device.

When material feed into the drum, under the influence of large centrifugal force, material will make a sprial movement along with drum surface. Meanwhile, oversize materials was removed out of discharge outlet; qualified materials(different sizes) be collected in undersize hoppers. Then sent to be the next system by belt conveyor or other.

Product Feature

Trommels are designed for high performance screening, classification and grading application. With over 50 years experience of it, our trommel screen has the following features:

Good performance, highest production rates, lowest input costs and long service life.
Capacity range of 7.5-1500 m3/hour of slurry, or 6-600 tons/hour of solids, per single trommel.
Speical design of screen makes it more durable than a common one.
Heavy duty jacking and adjustable stands, assist in rapid set up & assembly time.
High pressure spray bar network around the hopper and through out the length of the trommel.
Heavy duty roller supports (steel or rubber) wheels.
Portable mobile or stationary configuration.

There are four types trommel screen in our company: 1. enclosed type; 2. open type; 3. heavy-duty type; 4. light-duty type

Application

1) Quarry: gravel, clay, mountain meal, sand, etc.

2) Coal Industry: lump coal, coal dust, coal washing, etc.

3) Cold Mine: gold screening and washing

4) Chemical Industry: sifting calcium oxide, compost

5) Metallurgy, construction, mineral-selecting, etc.

6) Recycling Industy: solid waste, scrap tires, plastic, etc.

Technical Parameter

Model	Capacity	Power	Screen Diameter	Screen Length	Discharge Size	Input Size	Dimension (LWH)	Weight
	t/h	kw	mm	mm	mm	mm	mm	kg
GT-1015	50	3	1000	1500	0-100	≤300	260014001700	2200
GT-1020	100	4	1000	2000	0-100	≤300	339014002150	2800
GT-1225	160	5.5	1200	2500	0-100	≤300	414515002690	4200
GT-1530	250	7.5	1500	3000	0-100	≤300	446019002820	5100
GT-1545	350	11	1500	4500	0-100	≤400	596019003080	6000
GT-1848	450	15	1800	4800	0-100	≤400	650023504000	7500
GT-2055	600	22	2000	5500	0-100	≤400	750025604800	9600
