Motor Core Components Energy-Saving Gypsum Powder Ceramic Ball Mill With Air Classifier

Name: Motor Core Components EnergySaving Gypsum Powder Ceramic Ball Mill With Air Classifier
Brand: guote
Price: 6 USD

Motor Core Components Energy-Saving Gypsum Powder Ceramic Ball Mill With Air Classifier Manufactures

Applicable Industries : Energy & Mining, Building Material Shops, Energy & Mining

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Place of Origin : Shandong, China

Brand Name : guote

Voltage : 220v/380v

Power : 55-120kw

Dimension(L*W*H) : different model

Weight : 2000 kg

Warranty : 1 Year

Key Selling Points : high efficiency

Capacity(t/h) : 1-20t/h

Feeding particle size : ≤300mm

Product particle size : 4-120 mesh

Packaging Details : Special boxes and containers (sea transport) for Nice Quality laboratory magnetic separator

Supply Ability : 500 Set/Sets per Month Nice Quality laboratory magnetic separator

Price : $6,500.00/sets >=1 sets

MOQ : 1 set

Contact Now

Product Description

Motor Core Components Energy-Saving Gypsum Powder Ceramic Ball Mill With Air Classifier

Dry quartz powder Ball Mill quartz Powder Plant

mainly used for mineral processing, chemical, medicine, building materials, quartz powder for plate etc.

Ball Mill

Ball Mill can used to produce high purity quartz powder with 200-1250mesh, the product has many advantages such as high purity,good whiteness and stable granularity .

Outstanding Advantages:
The materials which less than 10mush, from feeding apparatus through the feeding hollow shaft screw enter into mill warehouse homogeneous, the warehouse is equipped with a ceramic liner plate with steel and jade balls of different specifications, the centrifugal force generated by the rotation of the cylinder brings the dielectric ball to a certain height and then falls down,impact and grinding on materials. The powder that meets the requirement is discharged through the discharge grate, finish the milling operation. After grinding, the material enters the classifier from the inlet, by adjusting the speed of the classifying wheel (frequency control, stepless speed regulation) and reasonable secondary wind, a reasonable and stable gas-solid two-phase flow is formed in the grading zone, the interaction between centrifugal force and the negative pressure of the fan is generated by the rotation of the classifying wheel to realize effective grading of materials. The coarse particles are returned to the ball mill by the coarse material return device to continue grinding, and the finished products are packaged by the automatic packaging machine. The whole system is equipped with a dust precipitator using more advanced electromagnetic pulse automatic ash removal,the dust is filtered by the filter bag after the dust-carrying gas enters the dust collector,dust attached to the outer surface of the filter bag is scattered at the bottom under the action of pulse blowback gas. The filtered clean gas is discharged into the atmosphere through the fan.

Specification

Model	Ball mill machine	Classification model NO.	Total Power	Capacity	Fineness	Classification accuracy	Filtration area	Dust concentration	Working system
GMF-100	Φ1500*5700	GF100	≤145	1.2-8	5-50	D97	≥70	≤40	Continuous
GMF-200	Φ1830*7000	GF200	≤225	3.5-4	5-50	D97	≥100	≤40
GMF-400	Φ2200*7500	GF400	≤345	5-6	5-50	D97	≥120	≤40

Packing & Delivery

1 Packaging: Specially made wooden boxes and containers
2 Shipping: 5-45 days after receiving initial payment

FAQ

Q: Why we believe in Weifang GuoteMining Equipment Company?
A: 1. More than 10 years experience.

Q. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
A. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, delivery time will vary depending on the type of the machine, shipping method selected and part
availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash.
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: What will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the
machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should I do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.

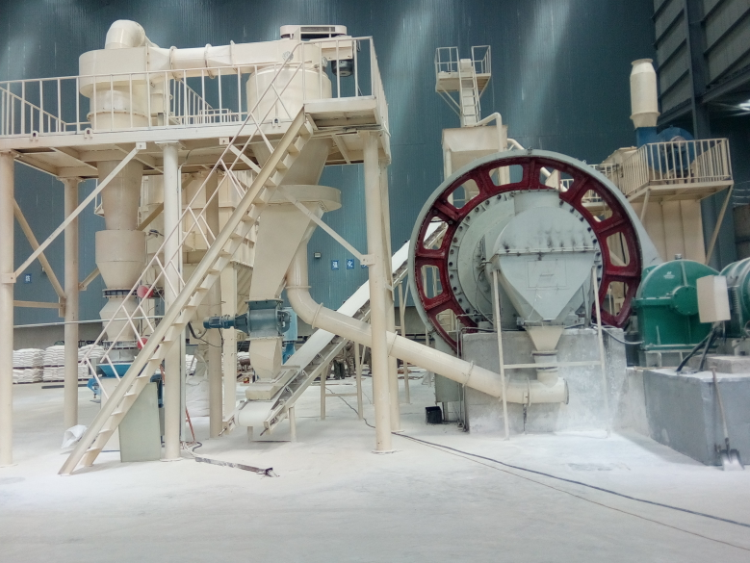

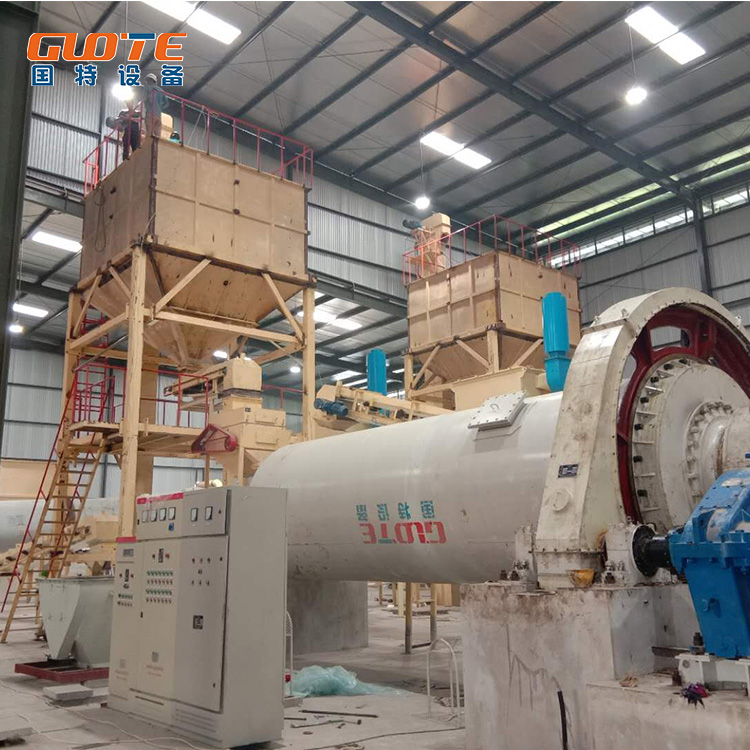

Motor Core Components Energy-Saving Gypsum Powder Ceramic Ball Mill With Air Classifier Images
