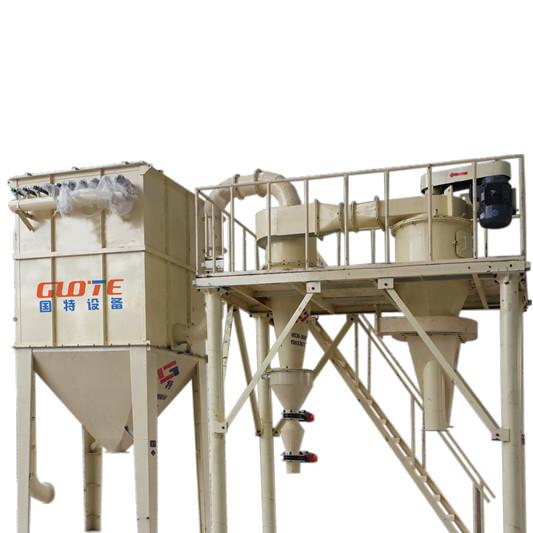

98% Matched Mill within Air Centrifugal Classifier for Mineral Powder Ore Separator

The classifying device is composed of pneumatic classifier, cycione, collector induced draft fan,control cabinet and so on,Equipped with second air iniet and vertical impeller rotro.the materials are fed in visa the bottom roller under the force generated from the induced draft fan and then mixed with first input air to disperse particle and then brought to classifying zone.Owing to the high rotary speed of classifying rotor,the particles are under the centrifugal force produced by the classifying rotor and centripetal force generatde from induced draft fan.When the centrifugal force is strong than the centripetal force,the coarse particles fall down along inside roller.The second air is induced to sieve the coarse material is discharged from classifier,the over-milled powder are collected by the cyclone and pulse collector.

Technical Characteristics:

♦The classifier used within the ceramic protection, less equipment wear, no pollution, high purity.

♦ classifier structure is designed, almost by all large particles, high grading precision, large granular control.

♦ classification by grading impeller speed and fan free to adjust the air volume, in order to obtain the required product, grading range.

♦ adopts low speed vertical single impeller hierarchical structure, material flow is stable, equipment processing capacity, high classification efficiency.

♦ using multi-stage structure, at the same time granularity classification of several products, the particle size distribution to obtain the ideal.

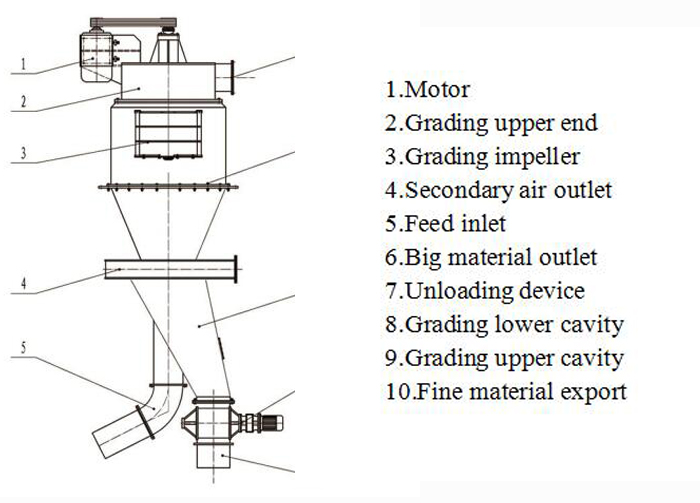

Process Chart:

1,bin 2,operating platform 3,classifier 4,cyclone collector 5,pulse dust collector 6,a high pressure draught fan 7,the cabinet

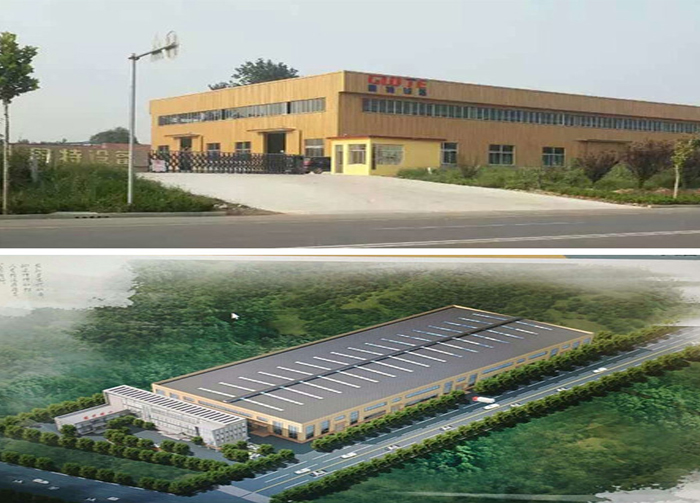

Weifang guote Mine Equipment Co., Ltd. is a research and development, engineering design, production and installation, commissioning services as one of the professional production of mining equipment, automation control equipment and the provision of non-metallic mineral production line test, design, consultation and the whole line delivery of the modern enterprise. The scope of services related to mining, metallurgy, electric power, coal, glass, paper, chemical building materials, refractory materials, tiles, food, cement and other industries, products are sold in more than thirty provinces, autonomous region.

The company products are: electromagnetic, permanent magnetic separator, dry wet magnetic separator, electromagnetic vibration feeder, quartz sand making machine, air classifier, dust collector, water separator, washing machine, flotation machine, metal detector, screw conveyor, timing quantitative feeding weigher, centralized control system and other products.

Pre-sales Service:

1. The wide product range enables us to provide our customers with stand-alone machines or complete processing plants;

2. Based on our customers'request and budget, our experts make efficient, reliable solutions;

3. Before placing the order every customer has the chance to visit daiwo working machines or complete plant in the site;

4. We have a full set of testing equipment, to provide a good test environment.

After-sales Service:

1. Experienced technicians guidance and engineers will be dispatched to the quarry site to help install the customers'plants;

2. Provide necessary training about machine daily maintenance to local workers ;

3. After-sales department has well-trained employees and professional installation engineers.

Q: Why we believe in Weifang GuoteMining Equipment Company?
A:
1. More than 10 years experience.
2. We are the leading professional supplier of mining equipments and service for quartz mining equipment industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.

Q: Delivery time
A: The lead time is 10-30 days, Delivery time will vary depending on the type of the machine, shipping method selected and
part availability.

Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 30% deposit of total purchase price and pay the full payment before delivery.

Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when
the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.

Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you ,please let us know your material and capacity.
